Description
The wavelength energy dispersive sulfur (WDX) analyzer for determination of sulphur mass fraction in petrochemicals is according to: EN ISO 20884:2004; АSTМ D 6334, ASTM D 2622
Fully radiation-protected.
X-ray wavelength dispersive sulfur analyzer ASW-2 is used for the measurement of mass concentration of the sulfur in unleaded gasoline, diesel oil, crude oil, kerosene, petroleum residues, lubricating oil, hydraulic oil, jet engine fuel and other types of cutter oil. Analyzer ASW-2 allows to measure mass concentration of the sulfur in vacuumized measurement chamber mode, as well as in helium purging mode. For this purpose the instrument is equipped with the set of tooling for the connection to helium station.
| Technical Sheet | |

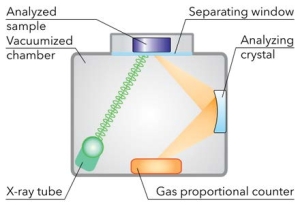

| Sulfur mass fraction determination method | X-ray fluorescence wavelength energy dispersive (WDX) analyzer with vacuumized chamber |
| Statistic limit of detection, max., ppm | 1.5 |
| Range of determined Sulphur concentrations, ppm | 3-50000 |
| Limits of basic relative error, % | ±0.5 |
| Power consumption, W(220 ACV, 50 Hz Mains) | 250 |
| Instrument weight, max kg | 45 |
