Description
| Technical Sheet | |
| Range of determined elements |
²⁷Co – ⁹²U ²⁷Co – ⁵⁸Ce, K-series radiation, ⁷³Ta – ⁹²U, L-series radiation. |
| Spectral resolution (half-width of line U Lα₁) less than, eV | 40 |
| Range of determined concentrations, % | from 10⁻⁴ to 100 |
| Limits of basic relative error, % | 0.5 |
| Detection limit of ⁹²U for 100 s, max, ppm | 1.5 |
| Number of simultaneously loaded samples, pcs. | 30 |
| Power of consumption, kW | 4.6 |
| Instrument weight, kg | 400 |
The analyzer operation principle is based on the excitation of atomic fluorescence radiation of substance sample by X-ray tube radiation. Fluorescence emission can be decomposed in spectrum by Cauchois method.
Fluorescence radiation focused by the analyzing crystal of the determined element and the line of standard are allocated onto the Rowland circle. Then they are recorded by turns by the X-ray detector. Intensity of fluorescence radiation registered of a certain wavelength is directly proportional to the mass fraction of a chemical element in the substance tested.
Distinctive scopes of application
- Geology and mining industry:
• determination of rock and ore composition;
• determination of concentrates composition. - Environmental safety:
• determination of Co, Ni, Cu, Zn, Ga, As, Rb, Sr, Ba, Pb in soils, sediments and rocks at ppm contents. - Determination of uranium and new advanced nuclear fuel thorium in rocks, ores and technological products in a wide range of concentrations from 10-4% and above.
- Determination of uranium in rocks, ores and products of their processing by X-ray fluorescence measurements is carried out according to the procedure No.420-РС developed by VIMS.
Distinctive scopes of application
- Ability to define groups of elements without
- reconfiguring analyzing crystal.
- Extremely high resolution of Cauchois X-ray optical
- scheme with quartz analyzing crystal(1011).
- Intelligent mathematical support.

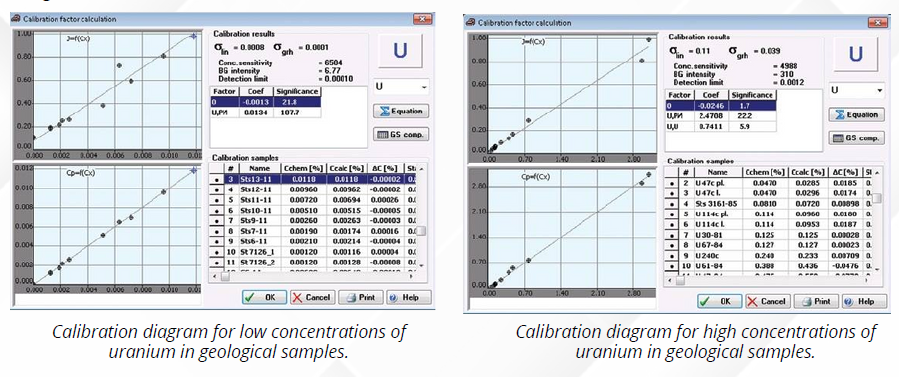

Program Interface
